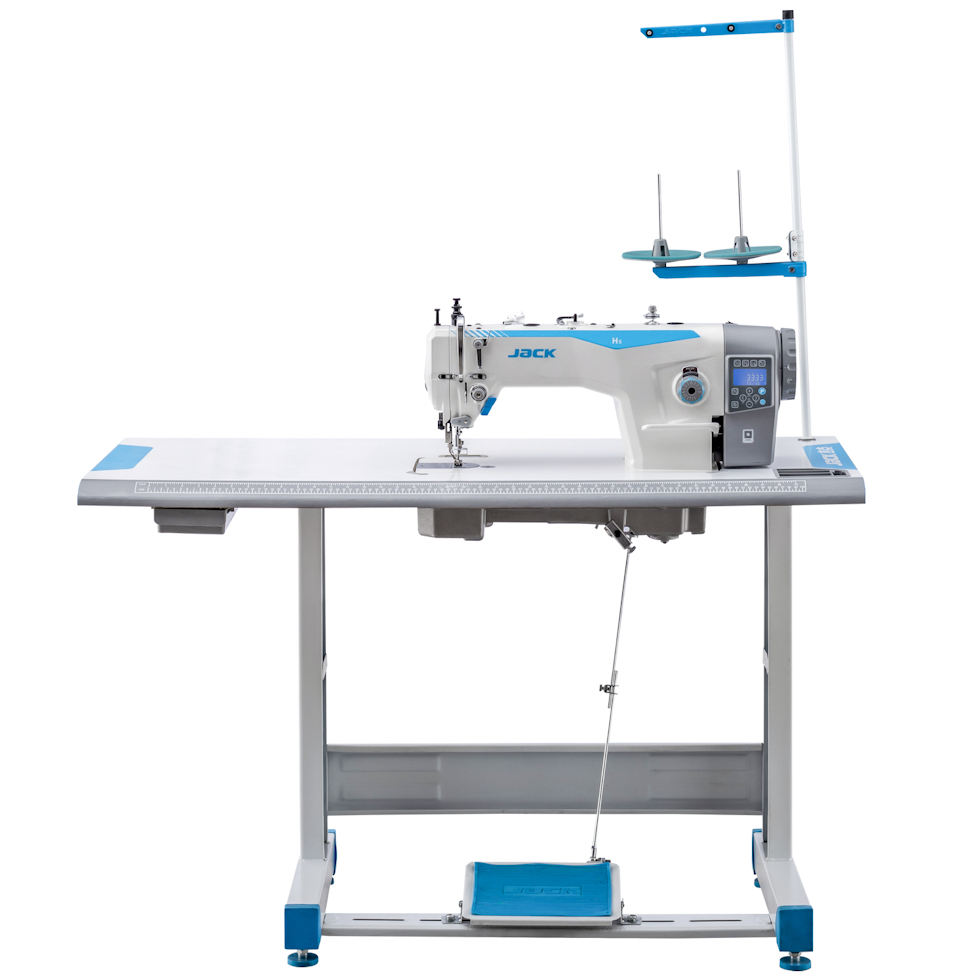

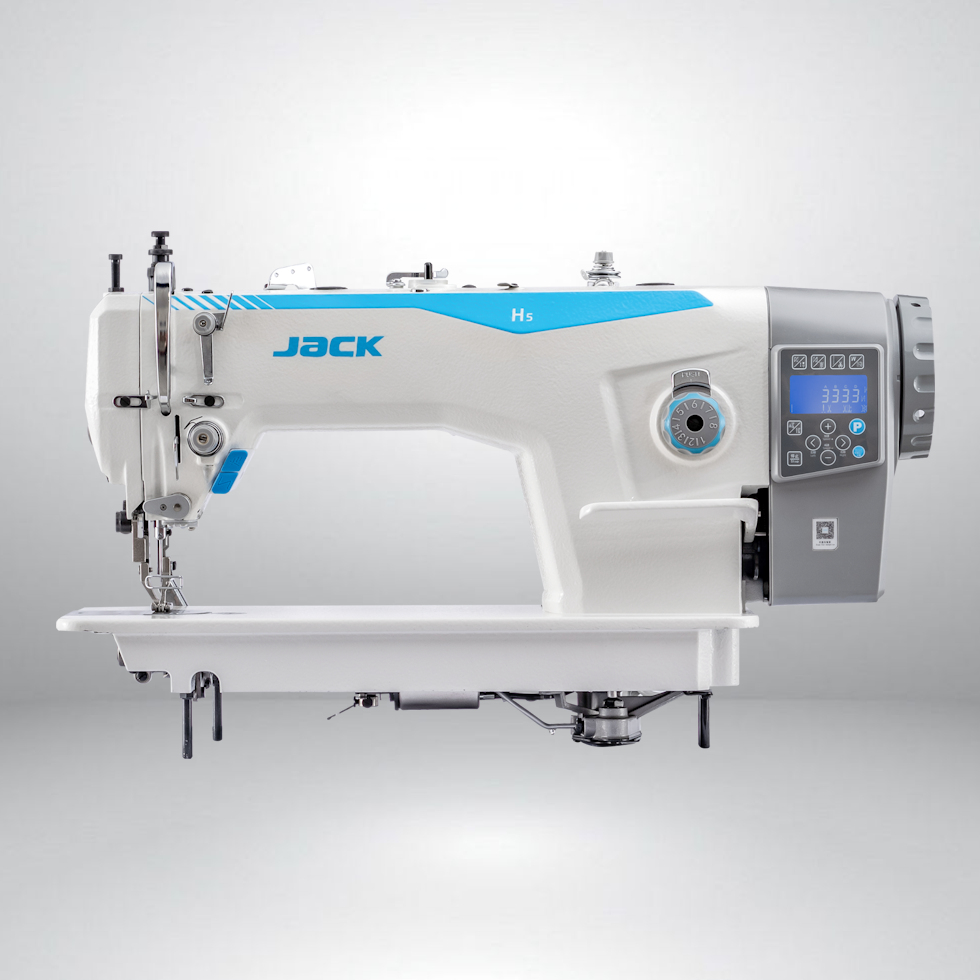

JACK H5 WALKING FOOT

The JACK H5 is a light to heavy duty industrial walking foot sewing machine with auto thread trimming, needle positioning and auto bartacking.

Description

The JACK H5 is a light to heavy duty industrial walking foot sewing machine with auto thread trimming, needle positioning and auto bartacking. It is both top and bottom feeding and can sew up to 10 layers of leather. The JK-H5 has a 750W direct drive energy saving motor. The JACK H5 has a self-lubricating system that reduces friction and heat to ensure minimum wear to metal parts. The maximum speed is electronically adjustable. 6 stitches overlapping. Users can reset to own parameters and out of factory parameters according to requirement.

Additional information

MAXIMUM SPEED:

2000rpm

NEEDLE TYPE:

135 X 17 / DP X 17

NEEDLE SIZE:

18 – 23 / 110 – 160

PRESSER FOOT LIFT HEIGHT:

7.5 – 16mm

STITCH LENGHT:

8mm

BUILD IN LIGHT:

YES
