JK-E4 JACK OVERLOCKING

High Speed Direct Drive Overlocking Series

Description

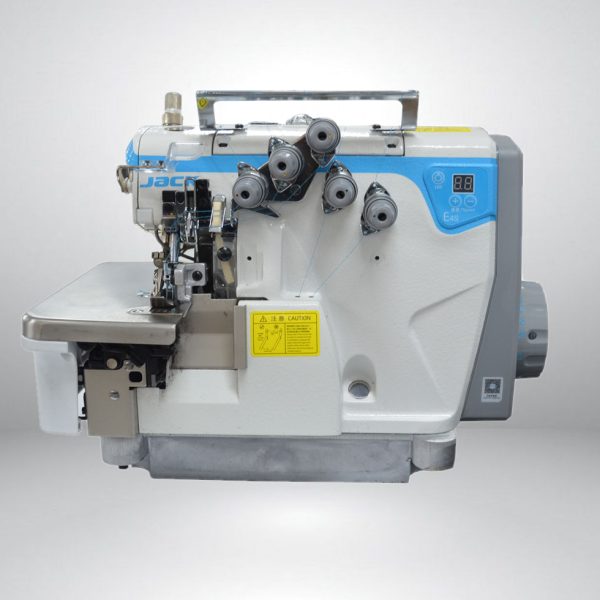

The E4 high speed direct drive overlocking series comes in three different models, namely 3-Thread, 4-Thread (Mock Safety) and 5-Thread (Safety Stitch Overlocker). This machines uses energy saving technology. It makes the machine a very quite and efficient industrial overlocking machine. It is also a self lubricating machine that reduces friction and heat to ensure minimum wear of metal parts. The maximum speed is electronically adjustable.

The Jack 6 Thread Overlocker uses direct drive, energy saving technology which makes it low on electricity
consumption, very quiet and with low vibration and can be used as a 3 thread, 4 thread or 5 thread overlocker.This will
enable the CMT factories to switch from woven fabrics to knitted fabrics without the need to change overlockers.

Additional information

Max Speed:

5500rpm

Needle Type:

B27 / DC X 27

Needle Size:

75-90/11-14

Presser Foot Lift Height:

5mm

Stitch Lenght:

3.8mm

Needle Guage (Distance Between Needles):

Various gauges available, depending on model.

Number of Cottons:

3 Threads
4 Threads
5 Threads
6 Thread

Build in Light:

Yes

WEIGHT

36 Kg

DIMENSIONS

52.5 X 36 X 51 Cm
