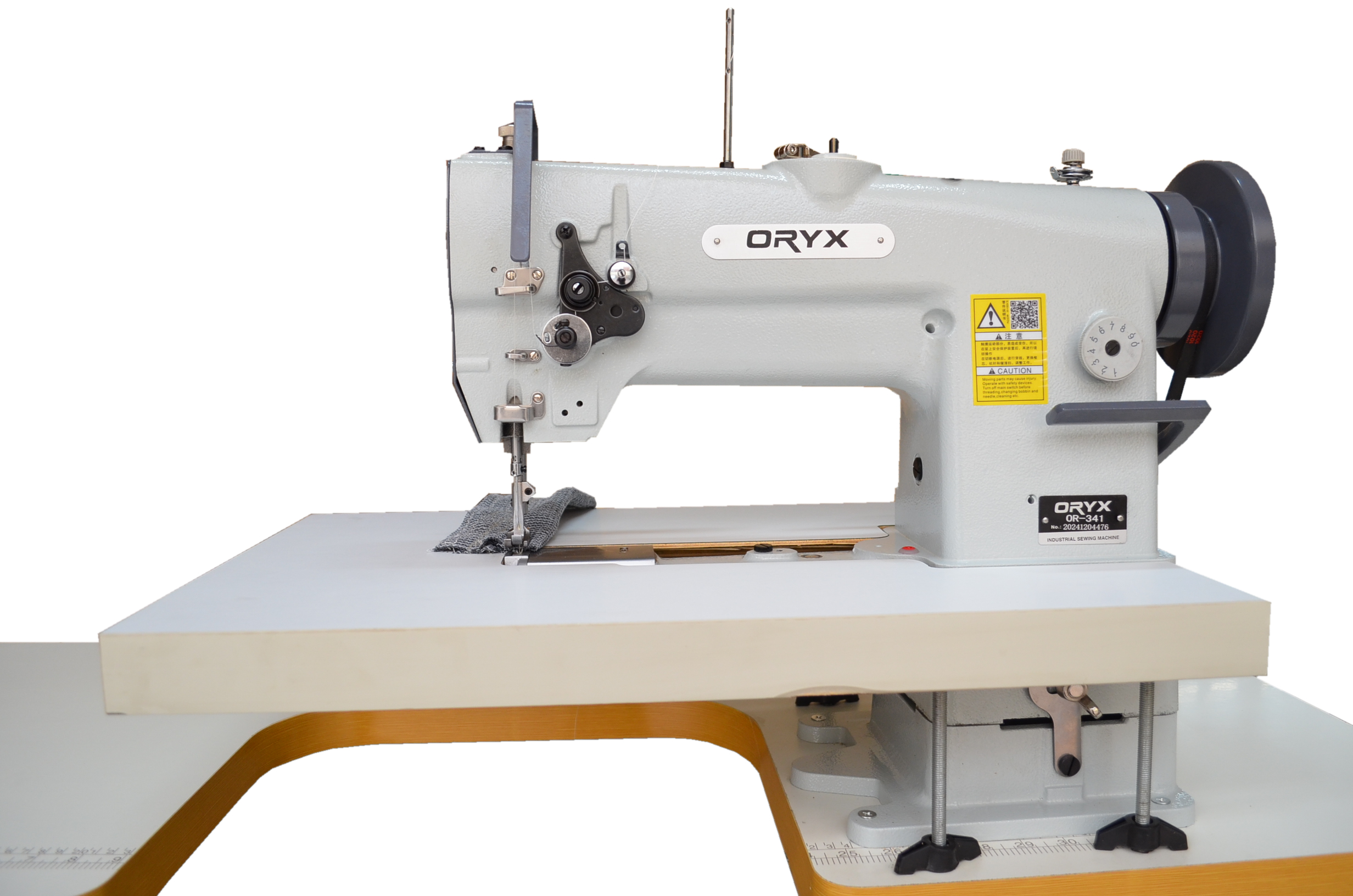

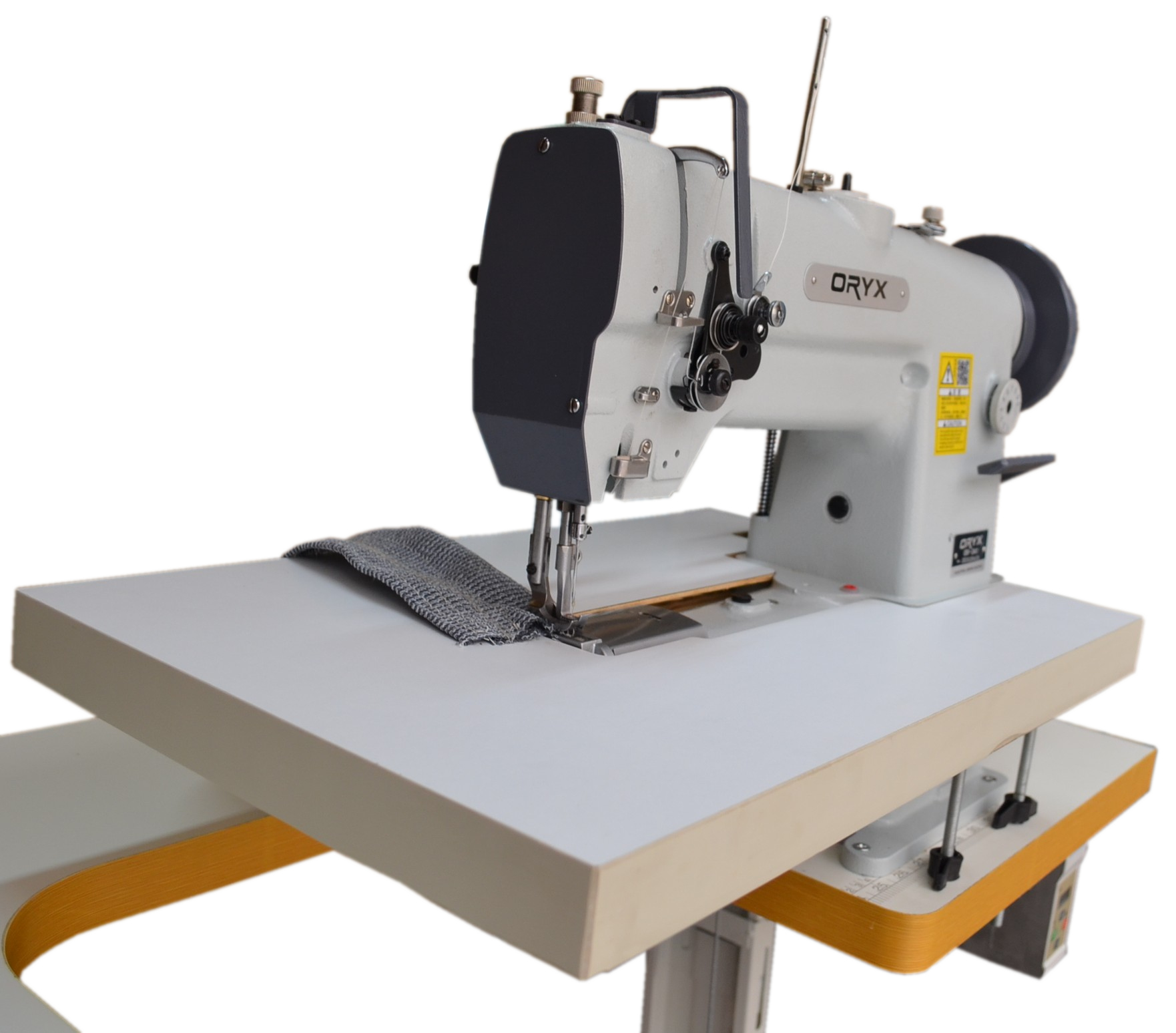

ORYX 341 CYLINDER BED COMPOUND FEED MACHINE

The ORYX 341 Cylinder arm walking foot sewing machine is suitable for heavy duty sewing on cylinder type, curved items such as purses, bags, handbags, sofa, shoes and small leather items.

Description

The ORYX 341 CYLINDER-BED COMPOUND FEED industrial sewing machine is a specialized, single-needle, designed for heavy-duty, compound-feed sewing tasks.
The ORYX 341 machine features a slender, cylindrical arm that allows for sewing tubular or curved items.
The Compound Feed employs a combination of a presser foot, feed dog, and needle feed to move heavy materials smoothly without shifting layers.
It uses a large vertical-axis hook (often called a “large hook” or “double capacity shuttle”) which reduces the frequency of bobbin thread changes.
Thread Capacity, Suitable for thick threads (size 20), making it ideal for decorative topstitching on leather.
It is widely used for working with purses, bags, belts, wallets, handbags, sofa,
shoes and small leather items.

Additional information

MAX SPEED:

2000rpm

NEEDLE TYPE:

135 X 17 / DP X 17

NEEDLE SIZE:

18 – 23 / 110 – 160

PRESSER FOOT LIFT HEIGHT:

15mm

STITCH LENGTH:

0mm – 9mm
